Linksys EA9500 Max-Stream MU-MIMO Tri-Band AC5400 Wireless Router Review

Linksys EA9500 Router Review
Is this Linksys' most powerful router? Read our review to find out.
4.3
Expert Rating

Linksys has been on a roll lately with high-performance routers, and the release of the EA9500 Max-Stream MU-MIMO AC5400 marks the latest addition to its lineup of dependable, feature-rich routers that come with a cost to match. But will the high price tag and limited functionality of MU-MIMO be too much for the average consumer to justify on their next router purchase? Will it make our list of the top wireless routers for the home or office?

Keep reading my Linksys EA9500 MU-MIMO AC5400 wireless router review to find out!

Overview

Summary: The Linksys EA9500 Max-Stream MU-MIMO Tri-Band AC5400 Wi-Fi router may be a hyphenated heck of a mouthful to say out loud, but it’s also a powerful, feature-rich router that leaves most of the competition in the dust.

Price: $269.99 on Amazon
Available: July 2016
Model: EA9500

WHY IT’S A TOP PICK: Powerful and sporting the latest technology, it’s hard to go wrong with this beast.

What We Liked

  • MU-MIMO capability
  • Exceptional performance at all ranges
  • Intuitive, well-designed software

What We Didn’t

  • Expensive
  • Bulky design may not fit where you want

Linksys EA9500 Router Specs

 Linksys EA9500 Max-Stream MU-MIMO Tri-Band AC5400
WiFi Type802.11ac
Processor1.4GHz dual-core processor
Transmission RatingAC5400
Operation ModesWireless Router, Wired Networking, Access Point, Bridge
128-bit Wireless Encryptiongreen-check-mark
2.4Ghzgreen-check-mark
5Ghzgreen-check-mark
Ports8 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
MU-MIMOgreen-check-mark
QoSgreen-check-mark
Dimensions14.3 x 5.4 x 11.7 inches
Weight3.2lb
USB Inputsgreen-check-mark
Price$399.99
Buy Now

Design

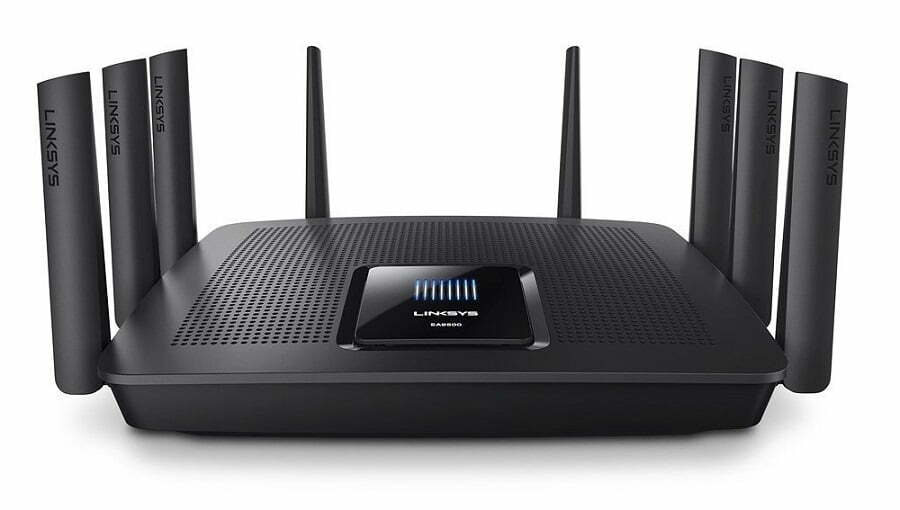

Linksys EA9500 Router

The EA9500 shares a lot of design notes from the EA7500, just done bigger and a little bit better than last time

In my time reviewing routers of every shape, size, and footprint, I’ve come to realize that there are two camps when it comes to how new units are designed: either to look sleek/sexy in your home, or built for raw, unapologetic performance. Routers that fall into the former category like the TP-Link C9 AC1900 or AmpliFi Wi-Fi Extender are made to be small, unassuming, and to easily blend into the background as an accessory to the overall design of your home, not the star that sits front and center.

Others, like the D-Link AC3200 or Netgear Nighthawk X8, couldn’t care less what they look like, as long as they’ve got the performance and power to back their price tag up. Of these two categories, at 3.2lb and the size of a phonebook the Linksys EA9500 easily falls into the latter, wearing the crown as both one of the largest and heaviest routers we’ve tested thus far.

The EA9500 is an imposing router in size and overall presence, with eight separate antenna lining all sides of the unit, grated black plastic, and a small display tucked away on top. The effect of the screen is nice, appearing to almost emanate from inside the router itself with a soft white glow that periodically flashes blue if MU-MIMO activity is detected or settings are being changed.

Despite how cool it looked though, the screen was pretty much useless otherwise. We couldn’t find a way to turn it off if we wanted to reduce the amount of ambient light in the room, and after trying a few different tasks to see what it responded to, it was clear the only information it was good for was telling us whether or not a MU-MIMO was live; something a regular LED light could have done all the same.

Hardware

Linksys EA9500 Router

The Linksys EA9500 has no shortage of available ports for anyone who needs a place to plug in

Because the EA9500 is a router built first and foremost for performance, it’s no surprise to see the sheer number of burly specs and features Linksys managed to pack into its husky shell.

The EA9500 features a 1.4GHz dual-core processor, tri-band AC5400 wireless, 802.11ac Wave 2 with MU-MIMO beamforming capability, eight high-powered antennas, nine gigabit Ethernet ports (8 LAN, 1 Internet), one USB 3.0 port, and one USB 2.0 for setting up external storage or adding onboard media servers.

Software

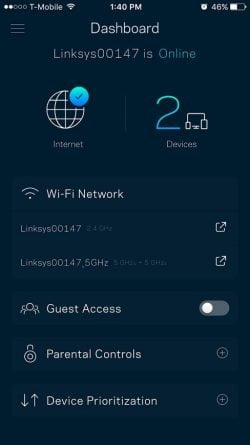

Linksys-EA9500-Router-Software

The new Smart WiFi app is intuitive and easy to use, the perfect combination

If you’ve read any of my past Linksys router reviews, you already know how much I love and fawn over the Linksys Smart WiFi dashboard. Personally, I think it’s simply the best router configuration tool on the market right now, and sets an example that every other manufacturer in the business should be quick to follow.

On the desktop side of things, not much has changed since my EA7500 review. All the same tools and features are available, including basics like parental controls and device network maps, up to more impactful additions like Media Prioritization which lets you acutely customize which apps and games have priority bandwidth over the rest.

Where Linksys has made some big changes, however, is on the mobile side of things. Although it’s not available to the public just yet, Linksys has taken many of the lessons learned from the original Smart WiFi and imported them to your phone. The transition between the two platforms feels seamless, and the end result is a stylish, highly-configurable app that lets you make all the same changes you could on your computer with the ease and simplicity of touch controls added on top.

Speed & Distance Tests

All number in Mbps2.4GHz (5ft)2.4GHz(30ft)5GHz (5ft)5GHz (30ft)

Linksys EA8300
Up: 31.75
Down: 150.97
Up: 76.39
Down: 163.82
Up: 281.26
Down: 502.53
Up: 118.50
Down: 261.30
Up: 99.46
Down: 69.68
Up: 5.45
Down: 9.96
Up: 149.83
Down: 199.93
Up: 9.07
Down: 12.95
61pduaxrczl-_sl1350_
Netgear Nighthawk X10
Up: 109.24
Down: 77.45
Up: 69.30 Down: 69.67Up: 388.04
Down: 513.45
Up: 351.29
Down: 354.44
linksys-wrt3200acm-design
Linksys WRT3200ACM
Up: 102.65
Down: 73.26
Up: 48.68
Down: 43.52
Up: 475.24
Down: 449.84
Up: 311.96
Down: 276.98
Product Image 1 (1)
AmpliFI HD Mesh Router
Up: 177.99
Down: 196.22
Up: 197.23
Down: 146.29
Up: 368.04
Down: 534.86
Up: 161.06
Down: 372.34
A1+ih84z5YL._SL1500_
TP-LINK Archer C5400
Up: 103.86
Down: 108.11
Up: 61.92
Down: 84.31
Up: 369.84
Down: 459.58
Up: 231.07
Down: 269.54
61qU72ikisL._SL1000_
Linksys EA9500 AC5400
Up: 106.49
Down: 94.73
Up: 69.86
Down: 70.84
Up: 295.30
Down: 302.3
Up: 204.35
Down: 214.64
51wKSYRGfAL._SL1000_
D-Link DIR-879 AC1900 EXO
Up: 102.05
Down: 81.34
Up: 65.28
Down: 64.75
Up: 241.46
Down: 338.53
Up: 209.32
Down: 177.06
Netgear Nighthawk X4S
Netgear Nighthawk X4S
Up: 77.45
Down: 109.24
Up: 59.33
Down: 78.36
Up: 241.70
Down: 348.86
Up: 223.42
Down: 169.15
Netgear-R8500-Router
Netgear Nighthawk X8 AC5300
Up: 91.32
Down: 104.97
Up: 71.61
Down: 82.20
Up: 288.97
Down: 348.33
Up: 216.49
Down: 200.58
Tp Link 9
TP-Link Archer C9 AC1900
Up: 64.94
Down: 96.35
Up: 67.18
Down: 34.26
Up: 289.97
Down: 483.37
Up: 181.40
Down: 132.40
Netgear NightHawk X6 AC3200
Netgear NightHawk X6 AC3200
Up: 59.19
Down: 84.98
N/AUp: 209.80
Down: 280.61
Up: 170.98
Down: 169.84
Linksys EA7500
Linksys EA7500 AC1900
N/AUp: 44.27
Down: 141.55
N/AUp: 78.72
Down: 209.31
Print
TP-Link P5 AC1900
Up: 90.89
Down: 99.21
Up: 40.77
Down: 82.267
Up: 354.28
Down: 524.54
Up: 247.32
Down: 269.95
Linksys WRT1900ACS
Linksys WRT1900ACS
Up: 63.38
Down: 70.02
Up: 59.37
Down: 56.66
Up: 299.83
Down: 412.59
Up: 242.43
Down: 216.16
D-Link DIR890L:R AC3200
D-Link DIR890L/R AC3200
Up: 49.25
Down: 66.30
Up: 33.89
Down: 36.03
Up: 285.83
Down: 470.85
Up: 200.06
Down: 325.12
Linksys EA9500 2.4Ghz 5ft

2.4Ghz at 5ft

At $349.99 retail, the Linksys EA9500 AC5400 is undoubtedly one of the most expensive routers you can buy on shelves today. So, does it have the performance to match its massive price tag?

Oh yeah, it’s got about as much horsepower as you could reasonably expect and then a little something extra to spare.

Linksys EA9500 2.4Ghz 30ft

2.4Ghz at 30ft

With MU-MIMO beamforming capabilities onboard, the Linksys EA9500 isn’t built so much for straight output as it is for intelligent bandwidth management and roaming capabilities, which it handled perfectly. Beamforming allows routers to intelligently manage how bandwidth is distributed throughout your home, depending on the location of the devices that it’s sending information to. In so many words, it means that if you and a friend or family member are trying to use data in the same physical location, the router will account for that and create a larger stream for the antennas that are closest to you.

Linksys EA9500 5Ghz 5ft

5Ghz at 5ft

On the 2.4GHz network at a distance of 5ft, we achieved results that showcase what the peak of wireless performance looks like in the second half of 2016, at 94.73Mbps down/106.49Mbps up. At 30ft on 2.4GHz we saw a slight drop to 70.84Mbps down/69.86Mbps up, though this was expected given the current limitations of the 2.4GHz transmission frequency.

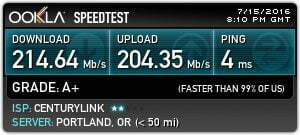

Linksys EA9500 5Ghz 30ft

5Ghz at 30ft

5GHz results were more in line with the rest of the routers we’ve tested, with 302.30Mbps up/295.30Mbps down at a distance of 5ft, and 214.64Mbps down/204.35Mbps up at 30ft.

Wrap Up

If you live in a large house, have a fiber connection, or do a lot of 4K streaming at the same time one of your housemates is trying to play a game or download a large file, then the Linksys EA9500 could be right for you.

The router is undoubtedly overkill for most consumers, but for those precious few who want to take their internet connectivity to the next level, the EA9500 is the next evolution in MU-MIMO technology amped up to 11.
